76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection

Product Categories
Shenzhen Carav Electronics Co., Ltd
Contact Now

76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection

Brand Name : Carav/OEM

Model Number : CP-80350

Certification : CE, FC, RoHS

Place of Origin : China

MOQ : 2 pcs

Price : $50.00 - $55.00

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000pcs per month

Delivery Time : 5-8 days

Paper type : Paperroll,sticker,adhesivesticker,etc

Material : Plastic

Paper Max width : 80mm

Dimensions : 220(D) x 150(W) x 157(H)mm

Color : Black

Interface : USB/ Serial+USB+Lan

Keyword : 2.5 Inch Thermal barcode Printer

Paper width : 20mm～82mm

Roll inner diameter : MIN 25mm

Roll external diameter : MAX 100mm

Contact Now

Label paper auto detection 152mm/s Print speed Barcode Printing With Cheap Price

CP-80350

Print speed can be up to 152mm/s
Support QR CODE printing
Support paper roll, sticker, adhesive sticker, etc.
Support label paper auto detection.

76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection

Printing
Printing method Direct thermal
Resolution 203DPI
Print width 76mm
Printing speed 152mm/s
Memory DRAM: 4M　 FLASH: 4M
Print head temperature
sensor		 Thermal sensitive resistance
Paper exists detection Photosensor
Interface USB Serial+USB+Lan
Character size ANK,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots)
Simplified /traditional Chinese: 3.0×3.0mm(24×24 dots)
Barcode Character
Barcode CODE128,EAN128,ITF,CODE39,CODE93,EAN13,
EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,
CODABAR,POSTNET,UPC-A,UPCA+2,UPCA+5,
UPC-E,UPCE+2,UPC-E+5,CPOST,MSI,MSIC,
PLESSEY,ITF14,EAN14
Internal font FONT 0 to FONT 8
Enlargement & rotation (0°,90°,270°, 360°) 1 to 10 times enlargement in both direction; 0°,90°,270°, 360° rotation
Image Monochromatic PCX, BMP image files can be load to FLASH, DRAM
Media type
Paper type Paper roll, sticker, adhesive sticker, etc
Paper width 20mm～82mm
Roll external
diameter		 MAX 100mm
Roll inner diameter MIN 25mm
Paper off type Tear off or peel off
Power
Power supply input 24VDC, 2.5A
Physical characteristics
Weight 1.52KG
Dimensions 220(D) x 150(W) x 157(H)mm
Environmental Requirements
Work environment 5～45℃, 20－80%RH(no condensation)
Storage
environment		 －40～55℃,≤93%RH(40℃)

Brief Introduction:
● Various label width, can be 16mm-82mm
● Label paper auto detection
● Temperature control function
● Modularity design and meet with various applications

76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection

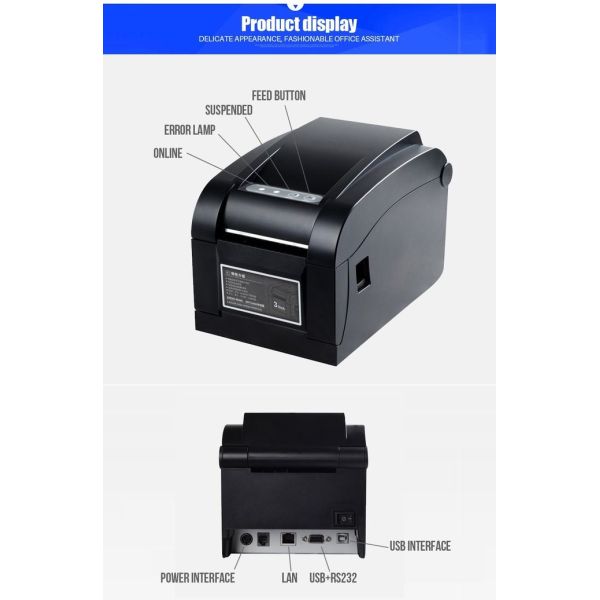

PORTS AVAILABLE

1.USB connector

2.RS232 connector

3.LAN

4.RJ45( cash drawer)

5.Power

76mm Print Width 152mm/S handheld Label Barcode Printer 2.5 Inch Auto Detection
